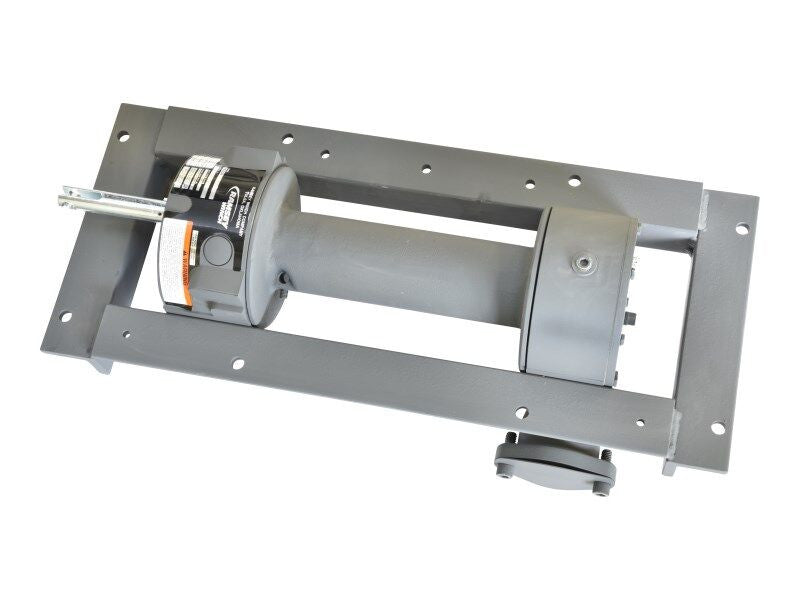

Ramsey HD234 8,000 lb. Hydraulic Worm Winch w/ Ram-Lok - Jerr-Dan w/ Adapter Rod and Box Frame

This is common replacement 8,000 lb hydraulic worm winch from Ramsey used with Jerr-Dan equipment. This winch includes the adapter rod and box frame and features a ram-lok clutch release.

•
  Specifications:
• Rated Line Pull: 8,000 lbs
• 1st Layer Line Speed: 28 ft/min
• Gear Ratio: 34:1
• Weight without Cable: 110 lbs
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
• Cable: Not Included
• Drum Size: 11.31" x 7.25" x 3.5"
• Cable Capacity: 140'
• Recommended Cable Size: 3/8"
• Hydraulic Pressure Required: 2,375 psi
• Hydraulic Flow Required: 15 GPM
• Motor Size: 3.6 cu. in.
• Clutch Type: Ram-Lok
• Clutch Control: Manual
